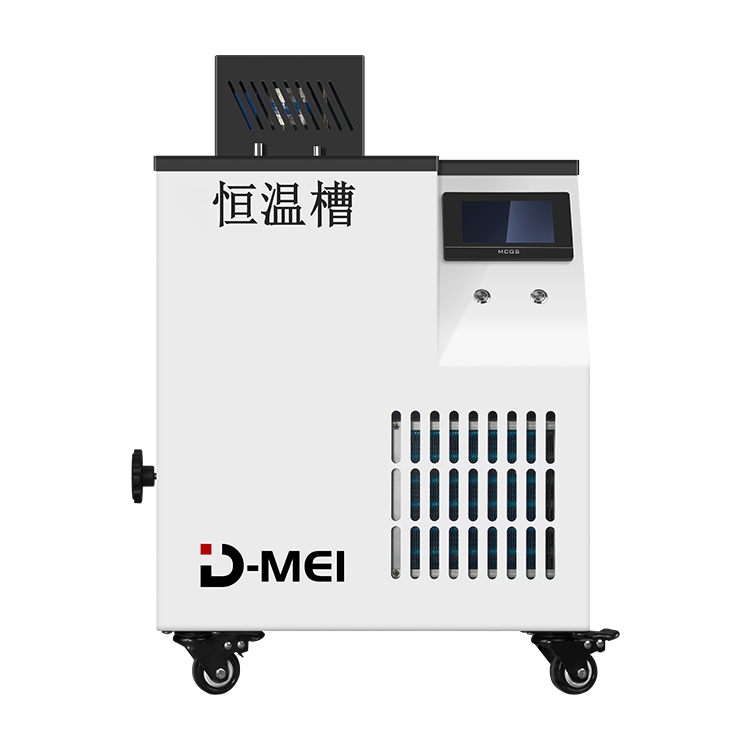

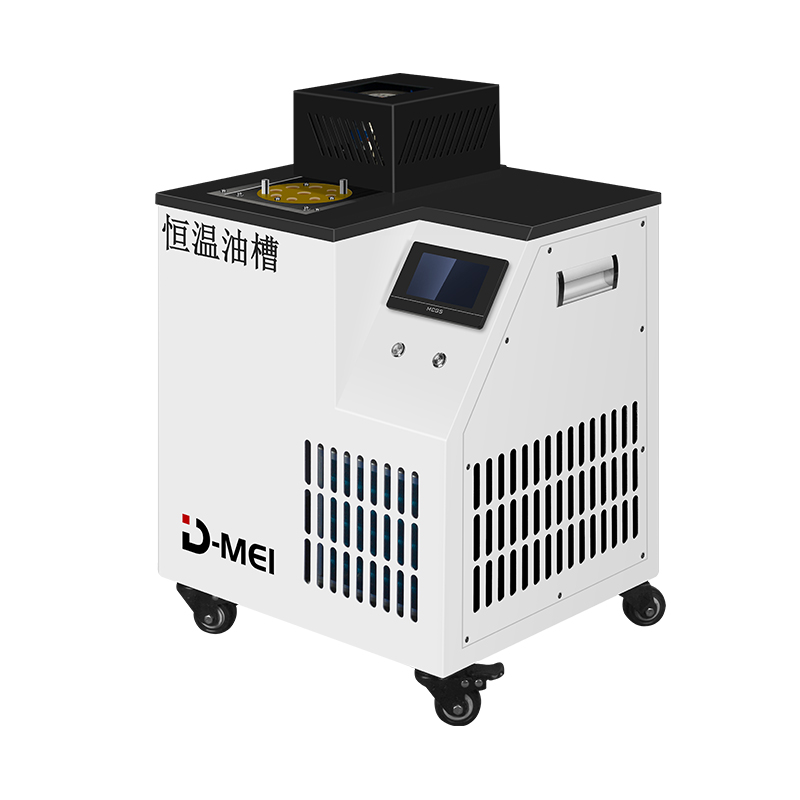

DY-HTS300M Portable Thermostatic Oil Bath(90℃-300℃)
◇ Product Introduction ◇ Product Features◇ Technical Indicator
[Product Introduction]
Portable constant temperature tank is a high precision automatic temperature verification equipment, high temperature control precision, easy to operate. Small size, light weight, easy to carry.
Product use
For metering department as a second - class standard mercury thermometer, Beckmann thermometer. Industrial platinum thermal resistor, standard copper - constantan thermocouple test, also can be used as high precision hot and cold source for production, scientific research.
[Technical indicators]
| Product Name | Portable Thermostatic Oil Bath |
| Model | DY-HTS300M |
| Range of Working Temperature | 90～300℃ |
| Temperature Fluctuations | ±0.015℃/10min |
| Temperature Uniformity | Horizontal temperature field ≤0.01℃；Vertical temperature field ≤0.02℃ |
| Working Area | Ф100×300(mm) |
| Volume | 8L |
| Working Medium | Methyl silicone oil |
| Ambient Temperature | Lower than 35℃ |
| Total Power | 1200W |
| Power Supply | 220v/50hz |
| Dimensions(High working surface) | 365×300×420(mm) |
| Outer shell material of the inner bladder | Stainless steel hairline plate |
